At a glance
6-stage filtered power distribution
Separate filtering stages per output
Integrated star earthing reference
Designed for cleaner, more stable power delivery
Purification
Six filter elements working to reduce unwanted noise and power contamination.
Isolation
Each output has its own filtering stage to minimise cross-contamination.
Reference
An integrated star earthing approach provides a stable reference across the unit.
Overview
Designed to bring discipline to the power chain.

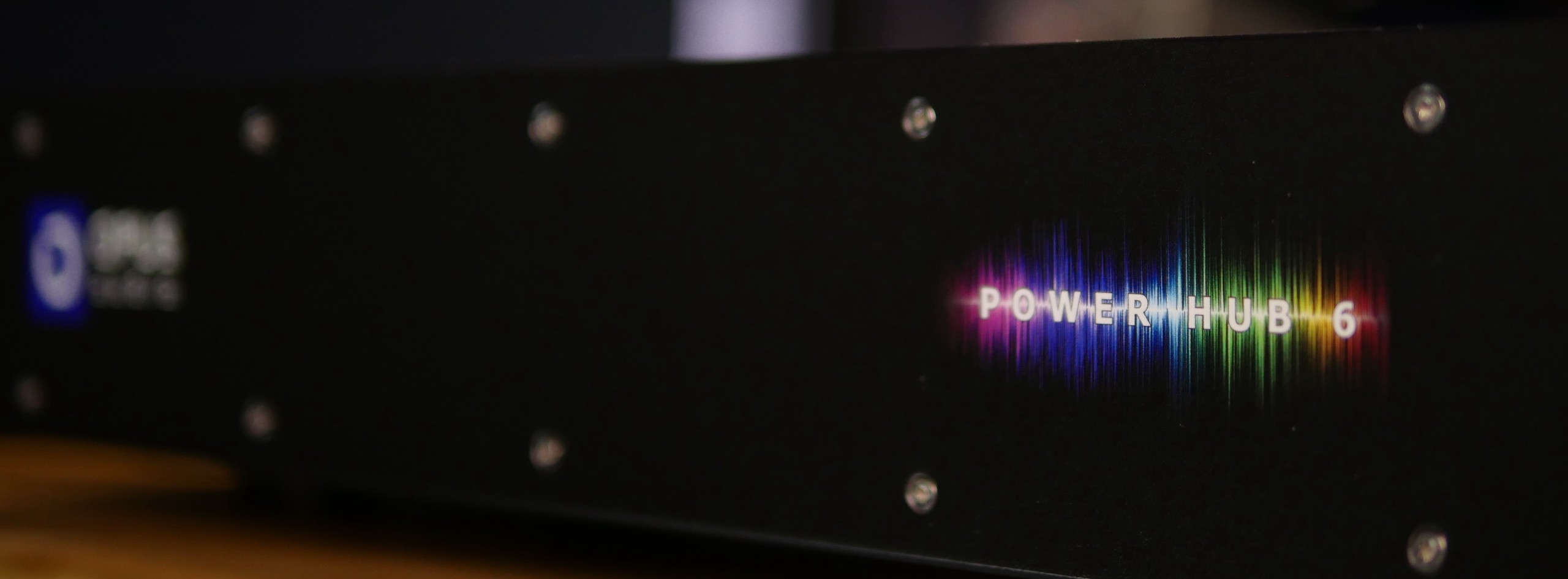

Power Hub 6 is built for systems where power quality matters. Its filtering architecture is intended to reduce unwanted noise on the AC supply while maintaining a solid, practical distribution platform for connected equipment.
- In use, the aim is simple: cleaner power delivery, more consistency across connected devices, and a more controlled electrical environment for critical listening and studio work.

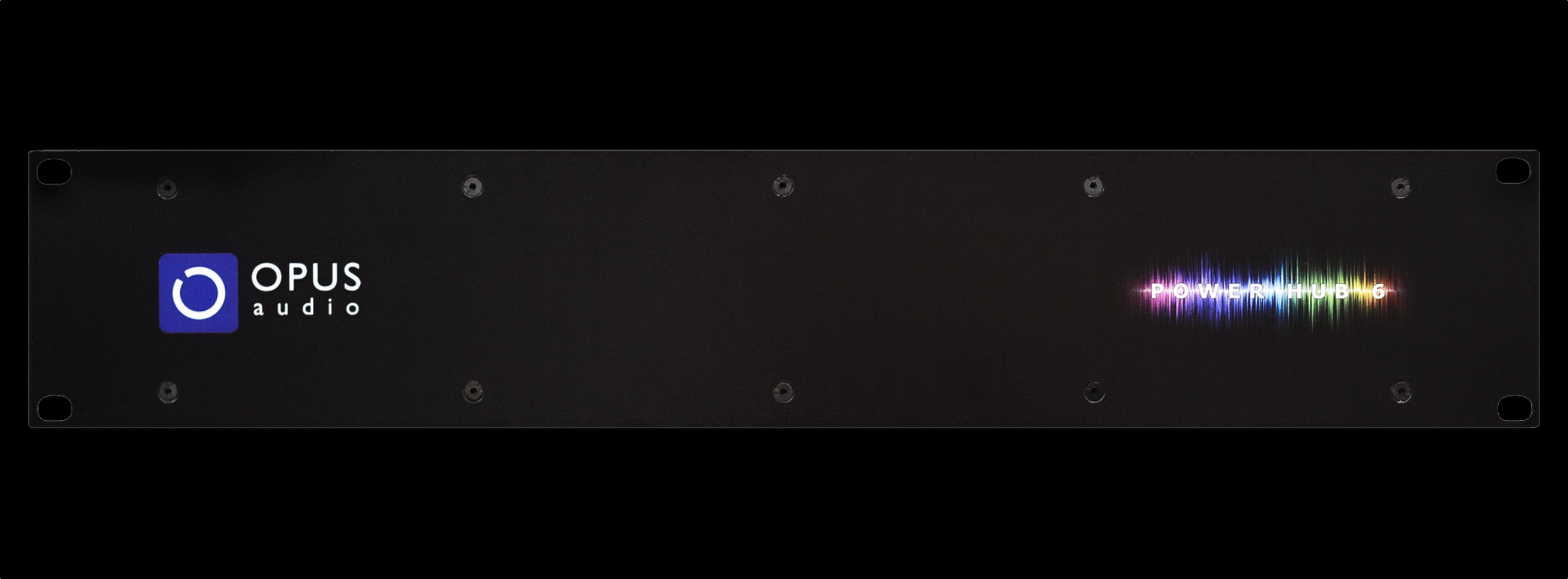

Format: : 19″ rack unit
Approx. size: : W 480 × D 230 × H 88

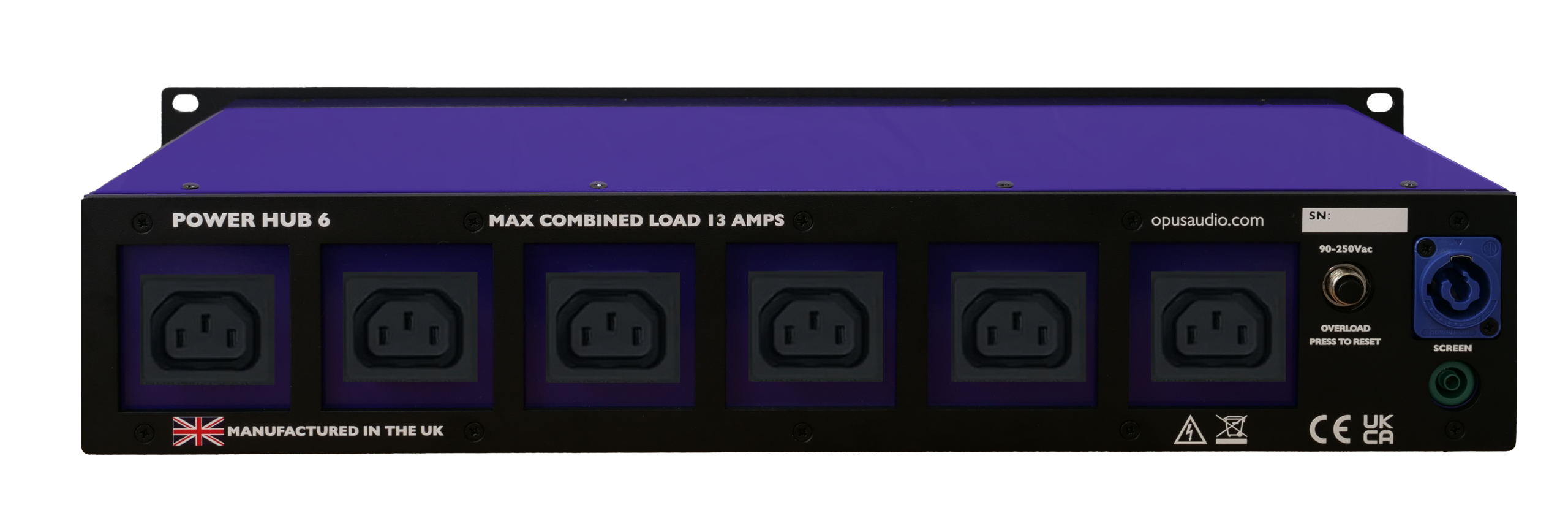

Outputs: : 6 × 13A
Supplied with: : 1U panel / rack installation option
Product Overview
Built for demanding systems and real-world installation.
The Power Hub 6 uses an array of filter elements to address common and differential mode noise, while also tackling DC offset from the AC mains.
Each of the six outputs has its own filtering stage, helping prevent connected equipment from influencing one another and supporting cleaner distribution across the system.
- Independent filtering stages per output
- Integrated star earthing arrangement
- Internal silver plated OFC copper and PTFE insulated wiring
- Manufactured in the UK

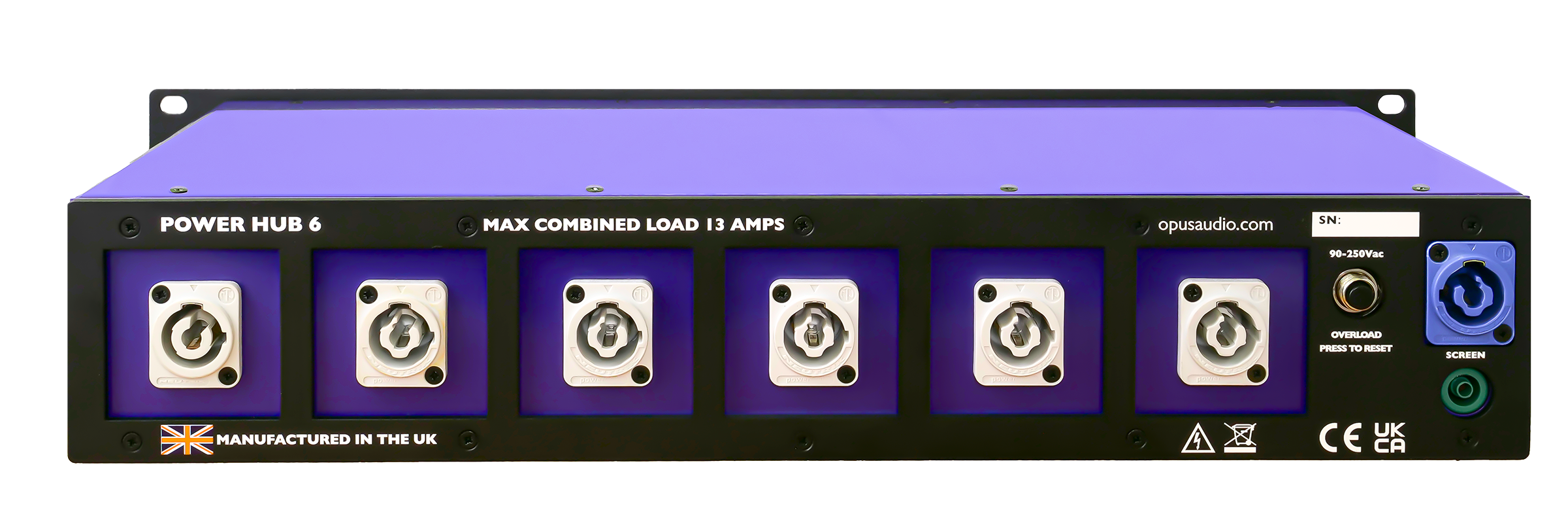

UK 240v – : 13A - IEC - Powercon
USA 110/220v – : Nema 3-pin
European 230v – : Schuko 3 contacts
Japan 90v/100v - : Nema 3 pin
Technical Notes
Specification & installation highlights
Wiring
Silver plated OFC copper / PTFE insulated
Protection
Continuous repetitive non-sacrificial surge reduction
Rack Format
19″ × 2U rack
Earthing
Integrated star earthing reference
Quick Start Guide
Need the tech specs fast?
Download the Quick Start Guide below for a concise overview of the technical details, installation requirements and key features of the Power Hub 6.
Product Overview

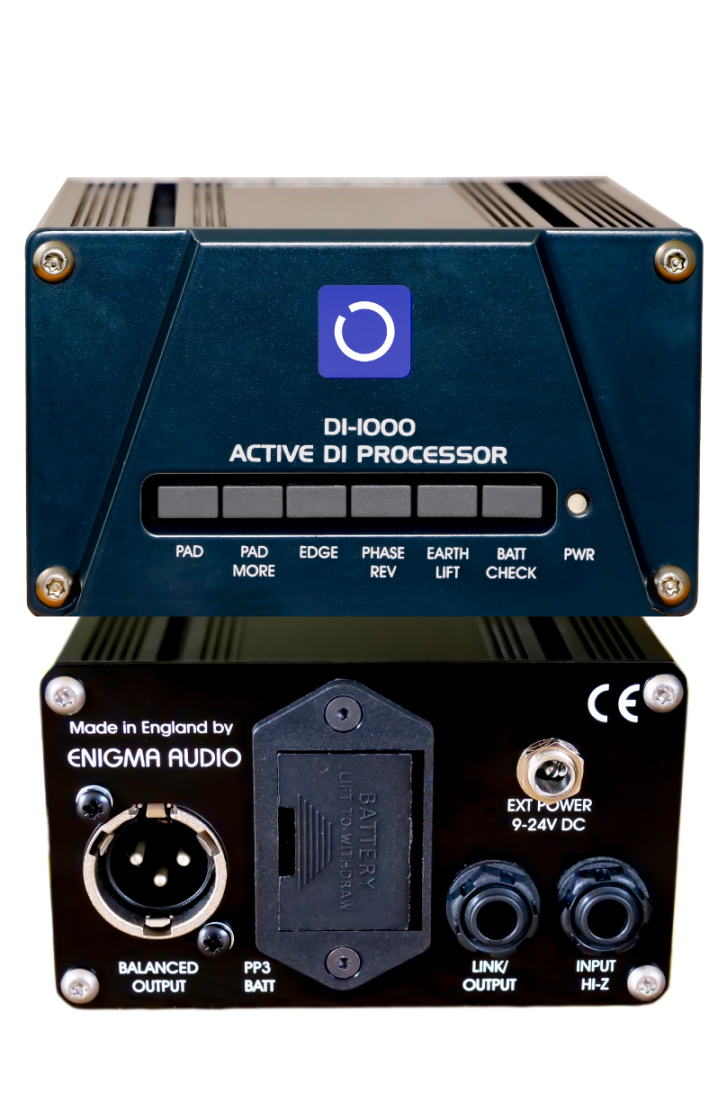

DI-1000 Active DI Processor
The DI-1000 is housed in a stage-ready extruded case and is powered by internal batteries, phantom power or external dc power supplies. Provides Direct Active interfacing between Opus Systems and instruments without sacrificing audio quality
Features the renowned 'Edge' tone shaping - which adds presence when required
It provides comprehensive Input and Output level matching with Phase and Earth correct, able to drive long cables runs with negligible loss.
- 'Edge' tone shaping presence
- Transformerless Designs
- Phase Correction
- Ground Lift and Level Matching
- Active Parallel Output
Configuration: Mono
Input Impedence: 10k Ohms
Input Headroom: +9dBu (9v battery) +20dBu (24v external)
Input: Unbalance Mono TRS Jack
Output : Balanced XLR (Mic or Line Level) - Unbalanced Mono TRS Jack
Visual Indicator: Battery Check / External Power
Weight: 0.5kg
Construction : 2mm Aluminium / Steel Shell - Solid Aluminium Front Panel
Dimensions: W: 105mm / H:61mm / D:112mm
Power Supply: 9v battery (24hrs continuous) - Phantom Power - External 9v to 24v
Opus Audio
Control. Precision. Stability.
If you want to explore whether Power Hub 6 or DI-1000 is the right fit for your system, get in touch.
